Tomcat Installation - Ubuntu

-





Post shows steps to install Tomcat. I am using Apache Tomcat for deploying Java WAR files.

Java need to be installed as a pre request.

For security purposes, Tomcat should run under a separate, unprivileged user.

root@tomcat:~# useradd -m -d /opt/tomcat -U -s /bin/false tomcat
root@tomcat:~#

By supplying /bin/false as the user’s default shell, you ensure that it’s not possible to log in as tomcat.

Installing Java:

root@tomcat:~# apt install default-jdk

root@tomcat:~# java -version
openjdk version "11.0.16" 2022-07-19
OpenJDK Runtime Environment (build 11.0.16+8-post-Ubuntu-0ubuntu120.04)
OpenJDK 64-Bit Server VM (build 11.0.16+8-post-Ubuntu-0ubuntu120.04, mixed mode, sharing)
root@tomcat:~#

Downloading Tomcat 10.

root@tomcat:~# cd /tmp

root@tomcat:/tmp# wget https://dlcdn.apache.org/tomcat/tomcat-10/v10.0.23/bin/apache-tomcat-10.0.23.tar.gz

Then, extract the archive you downloaded by running:

root@tomcat:/tmp# tar xzvf apache-tomcat-10*tar.gz -C /opt/tomcat --strip-components=1

root@tomcat:/tmp# chown -R tomcat:tomcat /opt/tomcat/
root@tomcat:/tmp# chmod -R u+x /opt/tomcat/bin
root@tomcat:/tmp#

To gain access to the Manager and Host Manager pages, you’ll define privileged users in Tomcat’s configuration.

You will need to remove the IP address restrictions, which disallows all external IP addresses from accessing those pages.

Tomcat users are defined in /opt/tomcat/conf/tomcat-users.xml.

<role rolename="manager-gui" />
<user username="manager" password="password" roles="manager-gui" />

<role rolename="admin-gui" />
<user username="admin" password="password" roles="manager-gui,admin-gui" />
Here you define two user roles, manager-gui and admin-gui, which allow access to Manager and Host Manager pages, respectively.

Built-in Tomcat manager roles:
    - manager-gui    - allows access to the HTML GUI and the status pages
    - manager-script - allows access to the HTTP API and the status pages
    - manager-jmx    - allows access to the JMX proxy and the status pages
    - manager-status - allows access to the status pages only

By default, Tomcat is configured to restrict access to the admin pages, unless the connection comes from the server itself.

To access those pages with the users you just defined, you will need to edit config files for those pages.

To remove the restriction for the Manager page - /opt/tomcat/webapps/manager/META-INF/context.xml

Comment out the Valve definition.

<!--  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" /> -->

Save and close the file, then repeat for Host Manager:

<!--  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" /> -->

You have now defined two users, manager and admin, which you will later use to access restricted parts of the management interface.

Lets create systemd for TOMCAT.

The systemd service that you will now create will keep Tomcat quietly running in the background.

The systemd service will also restart Tomcat automatically in case of an error or failure.

Create a file /etc/systemd/system/tomcat.service.

root@tomcat:/tmp# cat /etc/systemd/system/tomcat.service
[Unit]
Description=Tomcat
After=network.target

[Service]
Type=forking

User=tomcat
Group=tomcat

Environment="JAVA_HOME=/usr/lib/jvm/java-11-openjdk-amd64"
Environment="JAVA_OPTS=-Djava.security.egd=file:///dev/urandom"
Environment="CATALINA_BASE=/opt/tomcat"
Environment="CATALINA_HOME=/opt/tomcat"
Environment="CATALINA_PID=/opt/tomcat/temp/tomcat.pid"
Environment="CATALINA_OPTS=-Xms512M -Xmx1024M -server -XX:+UseParallelGC"

ExecStart=/opt/tomcat/bin/startup.sh
ExecStop=/opt/tomcat/bin/shutdown.sh

RestartSec=10
Restart=always

[Install]
WantedBy=multi-user.target
root@tomcat:/tmp#

root@tomcat:/tmp# systemctl daemon-reload

root@tomcat:/tmp# systemctl start tomcat
root@tomcat:/tmp# systemctl status tomcat
● tomcat.service - Tomcat
     Loaded: loaded (/etc/systemd/system/tomcat.service; disabled; vendor preset: enabled)
     Active: active (running) since Sat 2022-08-06 18:56:26 MST; 5s ago
    Process: 2875 ExecStart=/opt/tomcat/bin/startup.sh (code=exited, status=0/SUCCESS)
   Main PID: 2882 (java)
      Tasks: 29 (limit: 2171)
     Memory: 126.0M
     CGroup: /system.slice/tomcat.service
             └─2882 /usr/lib/jvm/java-11-openjdk-amd64/bin/java -Djava.util.logging.config.file=/opt/tomcat/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderL>

Aug 06 18:56:26 tomcat systemd[1]: Starting Tomcat...
Aug 06 18:56:26 tomcat startup.sh[2875]: Tomcat started.
Aug 06 18:56:26 tomcat systemd[1]: Started Tomcat.
root@tomcat:/tmp#

root@tomcat:/tmp# systemctl enable tomcat

Allow port 8080 on firewall.

root@tomcat:/tmp# ufw allow 8080
Rules updated
Rules updated (v6)
root@tomcat:/tmp#

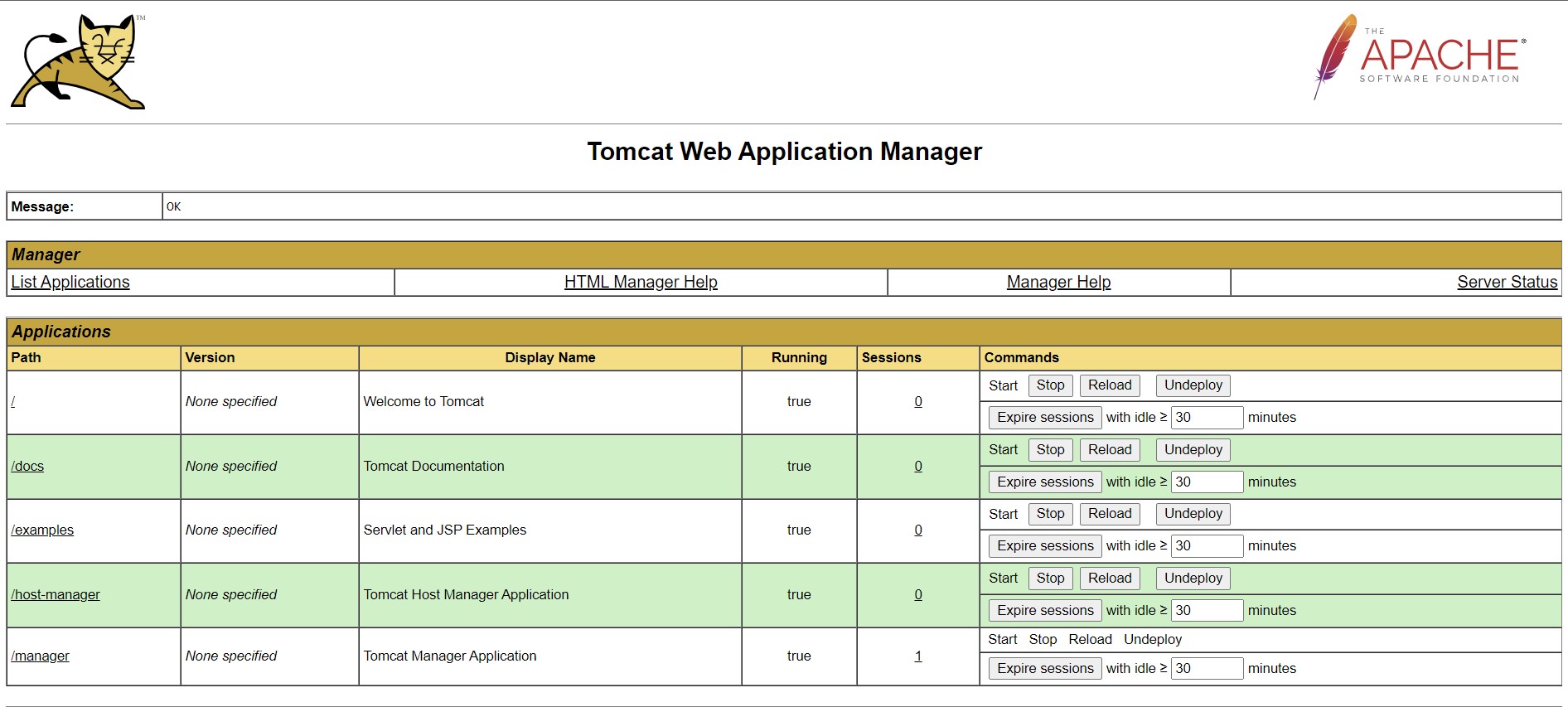

Access the Tomcat page on https://localhost:8080
